Air Conditioning & Heat Pumps
Low CO2 emission heating solutions
At Bathaircon, we select air source heat pump systems best suited for the application and budget. For commercial premises and private residences. We calculate the room loads and are careful not to over or undersize the equipment for the specific application.
Air source heat pumps are far more environmentally friendly than other traditional heating sources and can save money as well as reduce carbon emissions. Typically, the seasonal adjusted coefficient of performance for an air source heat pump are typically 3-4 i.e. up to 4 kWh of heating output for every 1 kWh used to run the HP.
We specialise in split heat-pump systems for Garden Rooms for home working and gyms etc.

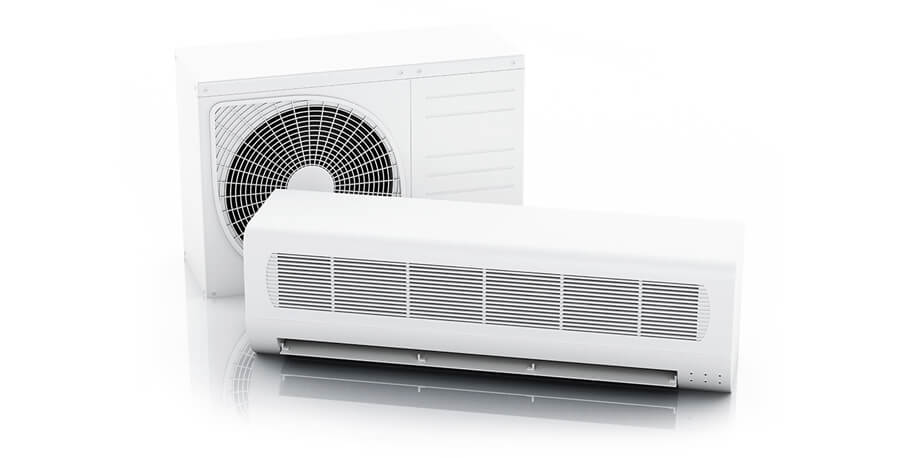

This is based on an inverter 5kW heat-pump system, single phase, which is ideal for large bedrooms, living rooms and offices etc. Units are available from 2.5kW for smaller single occupancy offices and bedrooms.
Features:-
- High wall mounted unit with three fan speeds. Floor & wall mounted options are also available.
- New night setback and silent modes for increased comfort
- Low ambient operation to -15 degrees centigrade
- Refrigerant charged to 10m
- Uses new Vector Control technology to deliver high Seasonal Efficiencies which reduces emissions and saves energy costs
- New wireless remote has seven day timer ensuring greater control to achieve higher energy efficiencies and save money
- Remote incorporates new ultra low fan speed giving users greater control over the noise levels of units
Specification:-
- Nominal cooling: 5kw
- UK cooling: 4.76kw
- SEER (Energy label): 6.30 (A++)
- Nominal heating: 5.8kw
- SCOP (Energy label): 4.20 (A+)
- Annual electricity consumption c/h: 278 KWH / 1568A
Indoor unit:-
- Dimensions: H x W x D (mms): 294 x 798 x 229
- Sound pressure cooling d(B)A UL/L/M/H: 25/28/37/46
- Sound pressure heating d(B)A UL/L/M/H: 27/31/37/45
Outdoor unit:-
- Dimensions: H x W x D (mms): 540 x 800 (+71) x 290
- Weight kg: 41
- Sound pressure level d(B)A: 53
Electrical data:-
- Power source rating A: 16
Installation / Refrigerant:-
- Max pipe lift (m): 15
- Pre-charged to (m): 15
